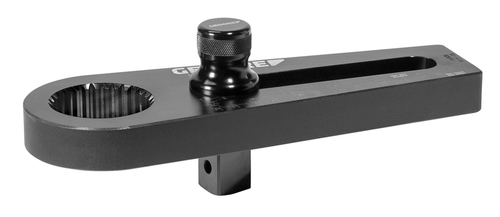

Product Overview
- Straight pattern
- With adjustable reaction square
- Made of light metal
Technical Specifications
| Net weight [kg] | 4.104 kg |
|---|---|
| Total length [mm] | 230 mm |
| Material | Light metal, Forged steel |
| Outside diameter [mm]. | 128 mm |
| Distance drive square - start reaction arm (min.) | 120 mm |
| Distance drive square - end reaction arm (max) | 315 mm |
| Version reaction arm | L-Form, straight |
| Height of flange ring [mm] | 35 mm |
| Radius of flange ring [mm] | 59 mm |
| Height of locking handle [mm] | 42 mm |
| Width reaction arm outer [mm] | 81.3 mm |
| Height square [mm] | 48 mm |
