Product Overview

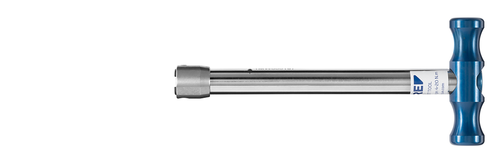

- Test Torque Wrench for Welding Studs from M2.5 to M12
- The long trigger release enables precise testing and reduces over-tightening
- T-handle design for error-free and safe handling
- Robust Construction
- Factory-fixed setting only possible with optionally available plug-on testing inserts
- If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)
- When factory-set, the delivery includes a factory calibration certificate
- The optional WSTT test adapter (Code: 3129276) is required for adjustment and recalibration
Technical Specifications
| Net weight [kg] | 0.215 kg |
|---|---|
| Total length [mm] | 120 mm |
| Target groups | Automotive, Industry |
| Range of application | Quality control |
| Torque (max.) [Nm] | 2 Nm |
| Torque (min.) [Nm] | 0.4 Nm |
| Torque (max.) [lbf·in] | 3.6 lbf·in |
| Precision +/- | +/- 6 % |
| Tightening direction | Left and right |
| Fixed setting | Yes |
| Trigger mechanism | Long travel triggering |
| Torque (min.) [lbf·in] | 18 lbf·in |
