Product Overview

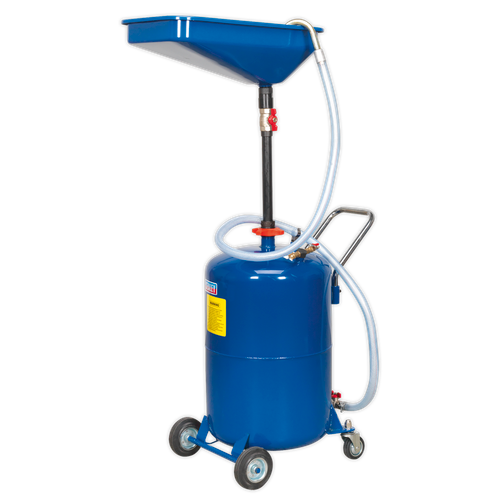

Steel fabricated 110L reservoir. Height-adjustable steel drain pan, fitted with filter, and gravity feed reservoir with air discharge hose. Heavy-duty wheels and castors for easy mobility.
- LARGE CAPACITY - Steel fabricated 110L reservoir.
- ADJUSTABLE - Variable height steel drain pan fitted with filter (Min./Max. 1250/1830mm.)
- CONVENIENT - Gravity fed reservoir with air discharge hose.
- HEAVY DUTY WHEELS AND CASTORS - Easy mobility.
Technical Specifications
| Air Discharge | Yes |
|---|---|
| Air Inlet Size | 1/4" |
| Capacity | 110L |
| Collection Bowl Capacity (L) | 20L |
| Gravity Discharge | No |
| Gravity Feed | Yes |
| Maximum Height to Pan | 1830mm |
| Minimum Height to Pan | 1250mm |
| Nett Weight | 32.72kg |
| Oil Discharge Pressure (bar) | 0.45bar |
| Pump Discharge | No |
| Suction Probe | No |
| Temperature Range | <80°C |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
