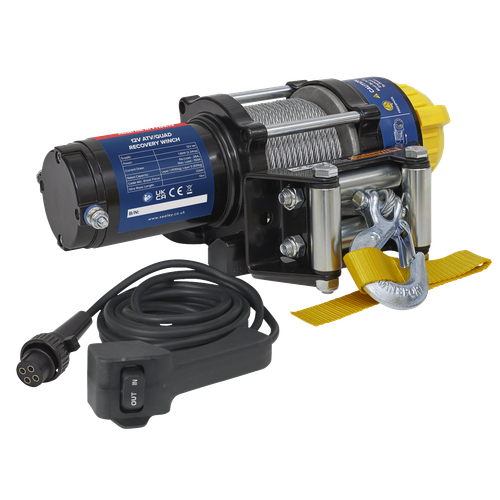

Product Overview
Suitable for ATV mounting. 3-Stage planetary gears. 12V DC 1.2hp Permanent magnet motor. Pull and turn clutch. 4-Way roller fairlead for even distribution of cable onto drum. Wireless remote included.
- ATV – Perfect for mounting an ATV.
- 3-STAGE – Use a 3-Stage planetary gearing mechanism.
- 12 VOLT – 1.2hp Permanent magnet DC powered motor.
- CLUTCH – Features a pull and turn clutch.
- 4-WAY – Roller fairlead for even distribution of cable onto the drum.
- WIRELESS – Remote included for use at safe distances.
Technical Specifications
| Consumable Parts | Wire Rope (Ø4.8mm x 12m) |
|---|---|
| Current Draw | No-Load - 12A, Maximum Load - 118A |
| Gear Ratio | 166:1 |
| Line Pull* | 1000kg/2200lb |
| Line Speed* | No Load - 3.3m/min, Maximum Load - 0.8m/min |
| Motor Power | 0.9kW/1.25hp |
| Nett Weight | 8.5kg |
| Note | *Performance quoted at first layer of cable on drum. |
| Supply | 12V |
| Wire Rope Diameter | 4.8mm |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
