Product Overview

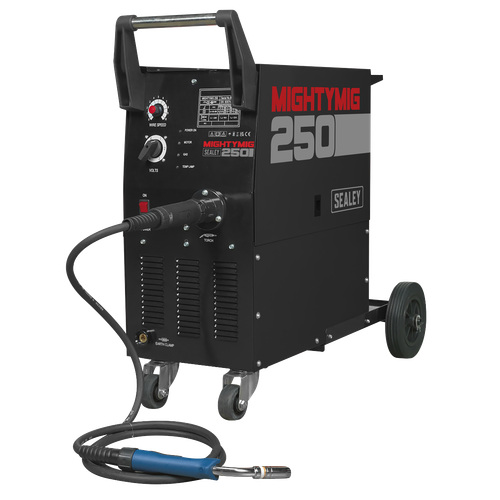

Heavy-duty high output transformer and forced air cooling to maximize duty cycle performance. Supplied with high quality cool running Ergo 15.2 Euro torch, 2m earth cable, 1.4m gas hose, twin gauged gas regulator and 0.6 and 0.8mm contact tips. Set-up in the gas welding mode but can also easily be switched to gasless. Can be used with large, industrial CO2 gas bottles.
- MIGHTYMIG RANGE – The heavy-duty high output transformer and forced-air cooling to maximize duty cycle performance and efficiency.
- SUITABLE FOR – Both gas and no-gas welding.
- MAXIMUM PERFORMANCE – 190A.
- WIRE CAPACITY – 5-15kg Wire Capacity.
- WELDING FEATURES - Variable wire speed control, 6 power levels and thermal overload protection.
- SUPPLIED WITH - High quality cool running Ergo 15.2 Euro torch, 2m earth cable, 1.4m gas hose, twin gauged gas regulator and 0.6 and 0.8mm contact tips.
- 3 YEAR GUARANTEE*.
- LIFETIME GUARANTEE ON TRANSFORMER*.
Technical Specifications
| Nett Weight | 45.8KG |
|---|---|
| Welding Current | 40 - 190A |
| Wire Capacity | 5-15kg |
| Duty Cycle | 100% @ 70A, 60% @ 90A, 15% @ 180A |
| Cooling System | Forced Air |
| Gas Type | CO2, Argon, CO2/Argon Mix |
| Torch | 3m Euro Non-Live - Ergo 15.2 |
| Supply | 230V - 16A |
| Absorbed Power | 7.2kW |
| Case Size | Large |
| Weight | 49.5kg |
| Flux Cored Wire (4.5kg x Ø0.9mm) | TG/100/4 |
| Replacement Tips 1mm (Pack of 5) | TG100/2 |
| Note | To achieve maximum power a 32A supply may be required. |
Warranty Information
3 years-year guarantee (parts & labour), in addition to your statutory rights.
