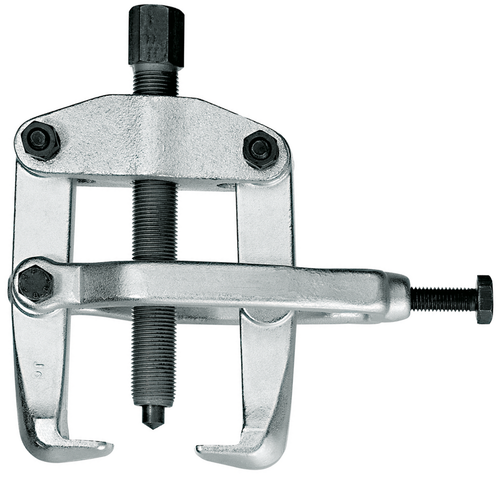

Product Overview
- This puller is mainly used for pulling steering levers on cars and trucks
- The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position
Technical Specifications
| Usable clamping reach [mm] | 85 mm |
|---|---|
| Spindle thread size | M 18x1,5 x 130 |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 12 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 19 mm |
| Tractive force (max.) [t] | 5 |
| Number of arms | 2 |
| Net weight [kg] | 1.6 kg |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 90 mm |
| Hydraulic spindle optional | - |
