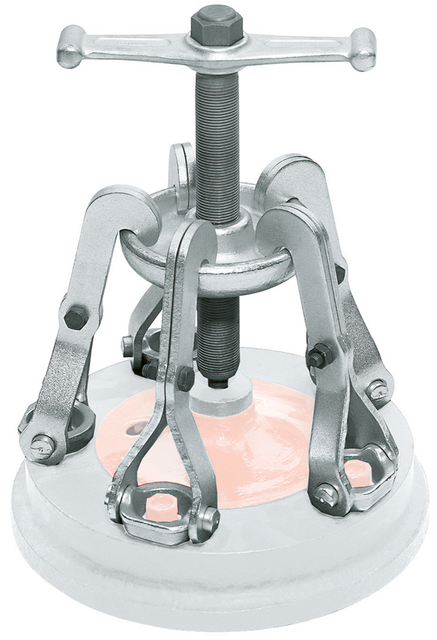

Product Overview
- For wheel stud circles from 150 up to 350 mm
- With wheel stud protection using rotating nut apertures that always lie flat to the hub for Ø 22 mm and suitable reduction bushing Ø 14 and 18 mm
- This tool may also be used with the hydraulic aid Nr. 1.50 without requiring a reduction bushing
- No. 1.61/H = Spare hook
Technical Specifications
| Spindle thread size | G 1 x 310 |
|---|---|
| Width across flats [mm] | 36 mm |
| Net weight [kg] | 12.24 kg |
| Can be retrofitted with hydraulic spindle | Yes |
| Hydraulic spindle optional | 1.06/HSP3 |
| Number of hooks | 8 |
| Wheel stud circles | 150 to 350 mm |
