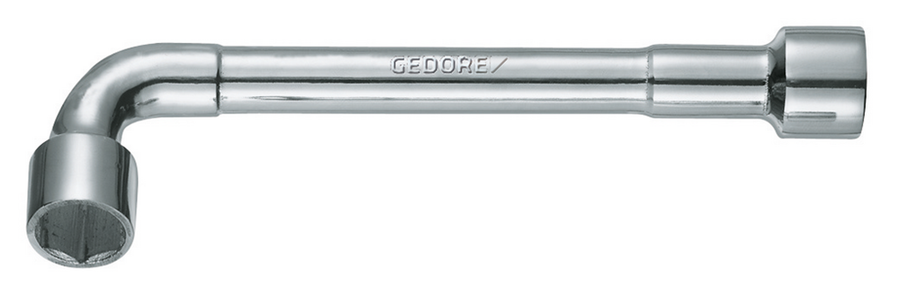

Product Overview
- Solid pattern with two hexagon heads
- Deep bores above the hexagon heads to take long studs
- On the angled side, the hole is exposed and can therefore also be used to accommodate a rotary pin (e.g. No. 26 D, please order separately)
- Chromed
Technical Specifications
| Net weight [kg] | 0.239 kg |
|---|---|
| Total length [mm] | 170 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 15 |
| Diameter of head 1 | 22.5 mm |
| Insertion depth 1 | 13.0 mm |
| Insertion depth 2 | 38.0 mm |
| Tommy bar-Ø 1 | 8.00 mm |
| Recommended accessories | 26 D 8 Pivot pin 180 mm, Ø 8 mm |
