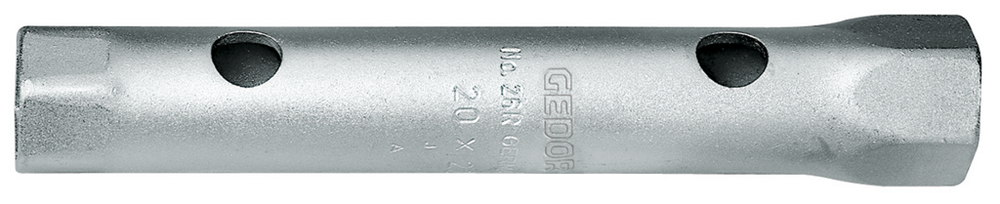

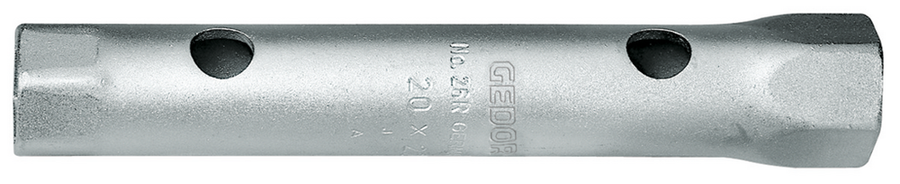

Product Overview
- With hollow shaft, in tubular steel
- With hole for tommy bars 26 D and 26 RS (please order separately)
- * not standardised
Technical Specifications
| Net weight [kg] | 0.055 kg |
|---|---|
| Total length [mm] | 122 mm |
| Total width [mm] | 16 mm |
| Total height [mm] | 15 mm |
| Material | Carbon steel C35 |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 10 x 11 |
| Standard | similar to DIN 896 - Form B, ISO 2236, ISO 1085 |
| Insertion depth 1 | 7.5 mm |
| Insertion depth 2 | 8.0 mm |
| Recommended accessories | 26 D 6 Pivot pin 160 mm, Ø 6 mm, 26 RS 1 Stepped pivot pin 190 mm, Ø 5 + 6 mm |
