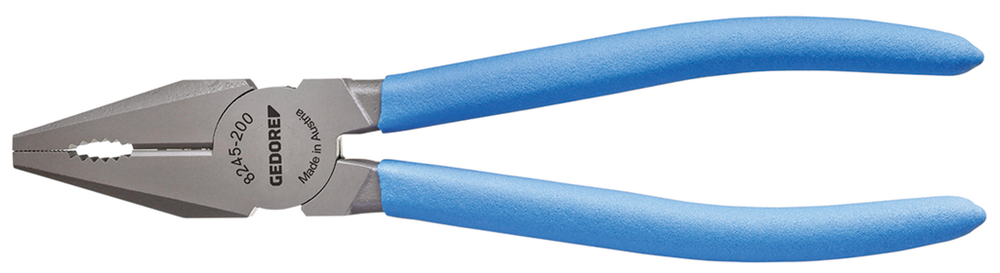

Product Overview
- For round and flat material
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
Technical Specifications
| Net weight [kg] | 0.297 kg |
|---|---|
| Total length [mm] | 200 mm |
| Total width [mm] | 50 mm |
| Total height [mm] | 15 mm |
| Material | Quenched and tempered steel |
| Width of head 1 [mm] | 29.5 mm |
| Colour | steel grey |
| Standard | DIN ISO 5746 |
| Handle design | dip-insulated |
| Handle colour | blue |
| Design non-sparking | No |
| Cutting values | Hard wire: 2,5 mm / 13 AWG, Medium hard wire: 3,8 mm / 7 AWG, Soft wire: 6 mm / 3 AWG, Cu cable, multi wire cross section: 16 mm², Multi-wire cable Ø: 13 mm |
| Hardness of cutting edge | 62 - 64 HRC |
| Jaw length L3 [mm] | 42 mm |
| Joint types | inserted joint |
| Blade shape | with facet |
| Head thickness [mm] T1 | 10.5 mm |
| Jaw shape [mm] | flat jaws |
| Width of centres W4 [mm] | 7.4 mm |
| Thickness of point | 10.5 mm |
| with cutting edge | Yes |
| Hardening process | Induction hardened |
| Bevel | with |
