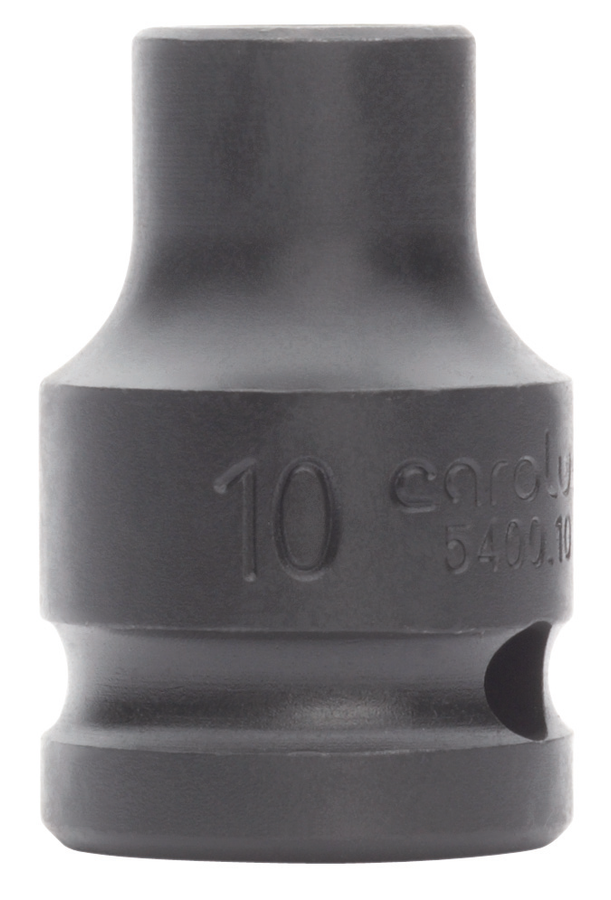

Product Overview
- * not standardised
Technical Specifications
| Net weight [kg] | 0.024 kg |
|---|---|
| Total length [mm] | 23 mm |
| Material | Steel |
| Surface | blued |
| Width across flats 1 [mm] | 13 |
| Standard | DIN 3129, ISO 2725-2 |
| Drive mount, square [metric] | 6.3 mm |
| Drive connector square [inch] | 1/4" |
| Backup | Circlip and pin |
| Working length | 23.0 mm |
| Insert-Ø 1 | 18.8 mm |
| Insert-Ø 2 | 13.0 mm |
| Operating depth | 9.0 mm |
| Actuation type | machine-operated |
| Test torque (min.) [Nm] | 68.6 Nm |
