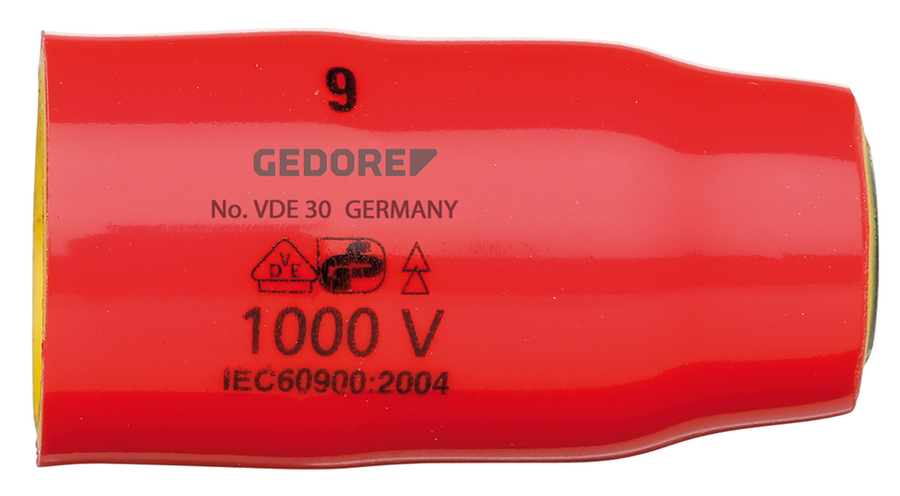

Product Overview
- Hexagonal, manually operated
- GEDORE vanadium steel 31CrV3
- 2-fold Check-Tool insulation
- 16 - 18 mm insulation overhang
Technical Specifications
| Net weight [kg] | 0.065 kg |
|---|---|
| 1000 V insulated | Yes |
| VDE certified | Yes |
| Total length [mm] | 46 mm |
| Total width [mm] | 27.5 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Type | VDE insulated up to 1000 V |
| Surface | double check-tool insulation |
| Width across flats 1 [mm] | 17 |
| Standard | ISO 1174, EN 60900/IEC60900 |
| Drive mount, square [metric] | 10.0 mm |
| Drive connector square [inch] | 3/8" |
| Backup | Ball Catching Cricket |
| Working length | 46.0 mm |
| Insert-Ø 1 | 27.5 mm |
| Insert-Ø 2 | 23.0 mm |
