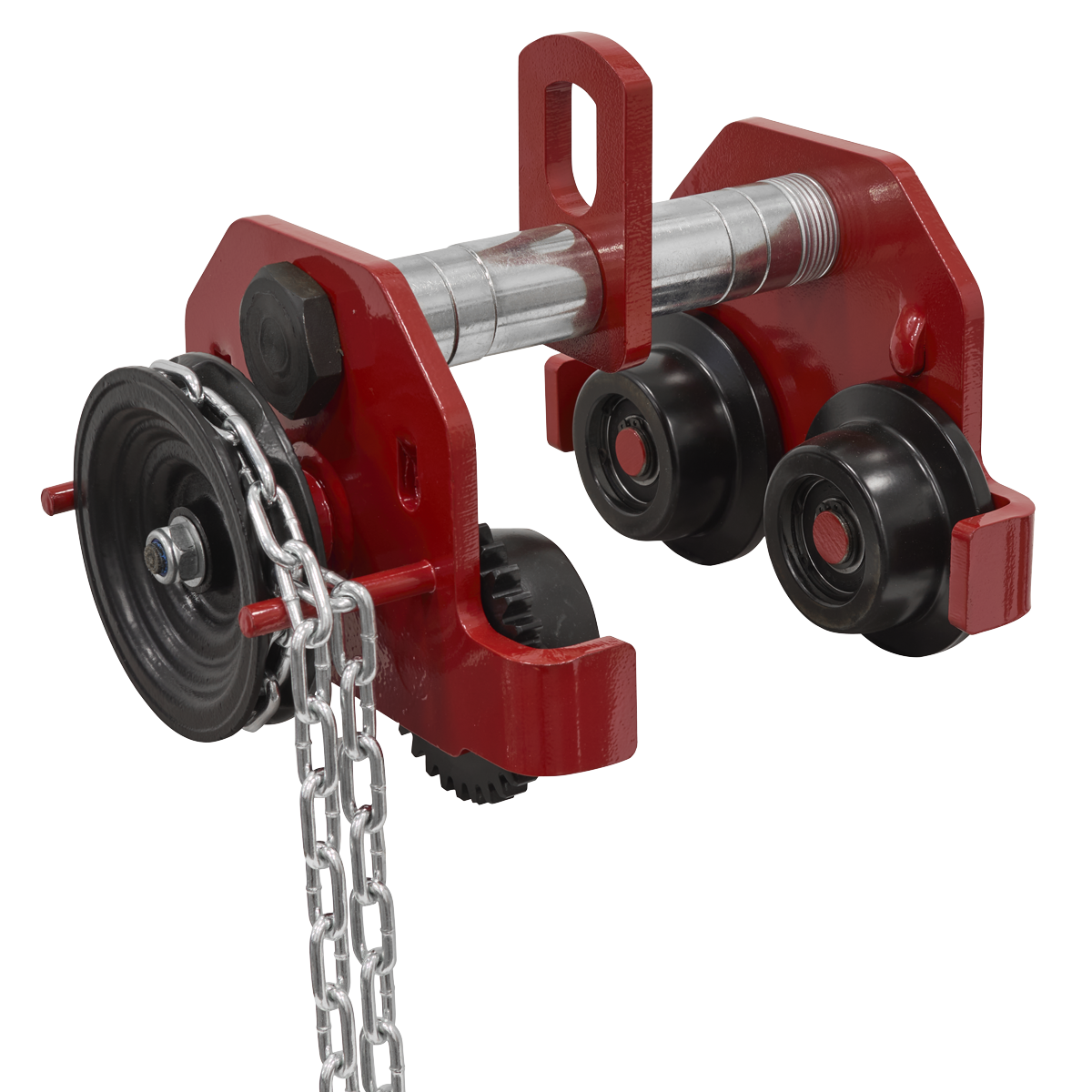

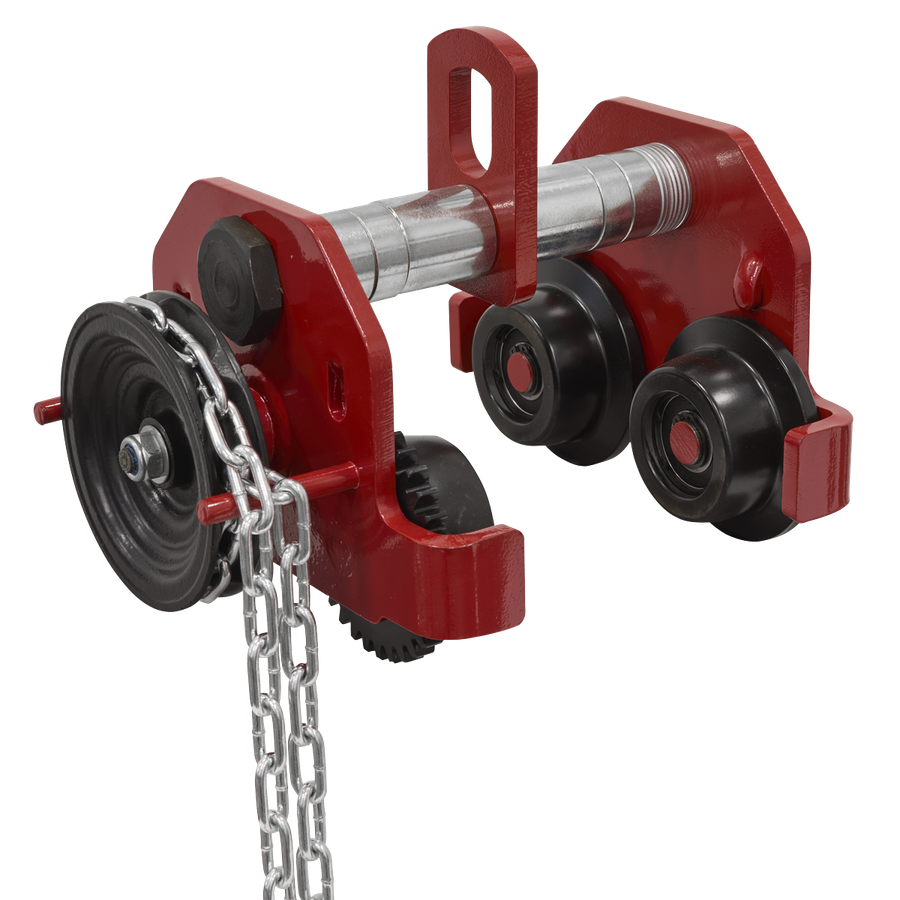

Product Overview
Heavy-duty steel construction with powder coat paint finish for corrosion resistance. Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling. Includes anti-drop plates for added security.
- PROFESSIONAL USE - Heavy-duty steel construction with powder coat paint finish for corrosion resistance.
- MULTIPLE FUNCTIONS - Suitable for use with our lever hoists or chain blocks.
- EASILY FITTED - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
- MANOEUVRABILITY - Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
- SAFETY FIRST DESIGN - Includes anti-drop plates for added security.
Technical Specifications
| Nett Weight | 15.8kg |
|---|---|
| Capacity | 2000kg |
| Minimum Curve Radius | 1300mm |
| A | 255mm |
| B | 138mm |
| C | 138mm |
| D | 102mm |
| E | 128mm |
| Minimum Distance Between Spans | 3000mm |
| Maximum Distance Between Spans | 9000mm |
| Minimum Standard I-Beam Dimensions (D x W x Web) | 180 x 100 x 6mm |
| Maximum Standard I-Beam Dimensions (D x W x Web) | 350 x 150 x 9mm |
| Weight | 15.8kg |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
